Ultra Low Distortion (DSP Bypass)
0.005%
Channel Formats
Stereo, 5.1, 7.1, Two Mono Subwoofers

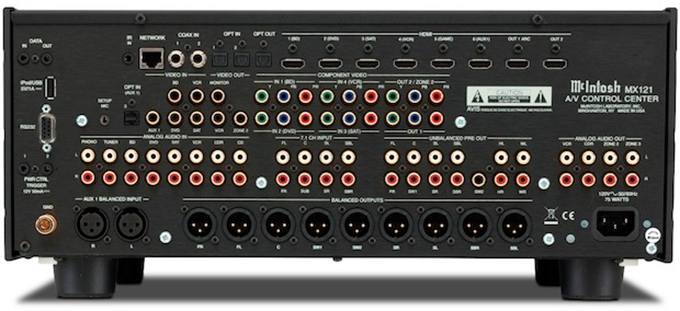

Balanced Input
1 set-Stereo
Balanced Outputs
7.1 + Second Subwoofer, or Height or Width
Unbalanced Inputs
7 Stereo + Moving Magnet Phono, 7.1 Input
Unbalanced Outputs
7.1 + SW, or H-2, or W-2, + VCR-2, + CDR-2
Digital Inputs
3-optical, 2-coax
Digital Output
1-optical
HDMI Inputs
6 - with 3D video pass-through, ARC, CEC, Deep Color, x.v.Color, Auto Lip Sync, Advanced HD audio
HDMI Outputs
One - Zone A, with or without ARC, 3D Video Pass-Through, CEC, Deep Color, x.v.Color, Auto Lip-sync
Component In and Out
4 in and 2 out
Composite/S In and Out
5 in and 3 out
Additional Zone Outputs
Two Stereo: Zone 2- Analog audio/video, Zone 3-Analog audio
Max. # of audio channels in Zone A
8
DSP Room Correction
Audyssey MultEQ XT, Dynamic EQ / Dynamic Volume. DSX

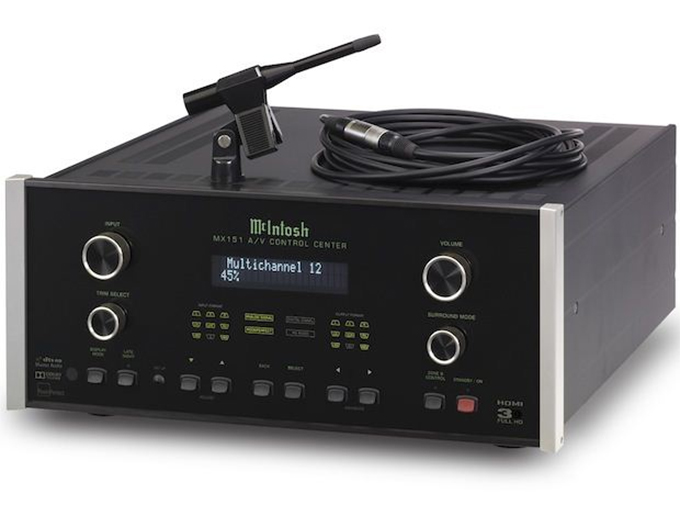

Microphone and stand included
Yes
|
Advanced Connections
Ethernet Web interface, Update, IP-based control + Web Data Streaming
Network Features
DLNA 1.5 Certified, Pandora, Internet Radio, Flickr
Unique x-over Frequency, Each Speaker
Yes
Special Features
Rear Panel USB-Apple Doc, HDMI in standby, Apple AirPlay
Third Party Control
RS232, Web IP, Serial Data input, IR input port
Tone Controls
Nine Band Equalizer, Bass and Treble
OSD Overlay on HDMI output
Yes
Input-Output Format Indicators
9 in and 9 out
Control Of McIntosh Sources
Yes, by handheld MX121 remote, 1 Data Out, 2 Power Control Trigger jacks
Video Scaling
Yes, up to 1080P HDMI
Dolby Processing
True HD/Digital Plus&EX/Pro Logic IIz, IIx
DTS Processing
HD Master & High Res. Audio/ES/96/24, Discrete & Matrix6.1/Neo:6/Express/Neural
Pure Stereo DSP Bypass Mode
Yes
Weight
30 lbs (13.6kg) net, 54 lbs (24.5kg) shipping
Dimensions
17 1/2" (44.45cm) W x 7 5/8" (19.37cm) H x 19 1/2" (49.53cm) D
|
